This section outlines how the incident/defect tracking features of SpiraPlan® can be used to manage key product artifacts during the software development lifecycle. In addition to managing the defects raised during the execution of test cases in the test management module, the Incident Tracker is also a powerful risk/issue/bug tracking system in its own right. When coupled with the product dashboard it is a powerful tool for representing all the key risks and issues associated with a product in a single, graphical format.
Unlike a standalone bug/issue tracking tool however, you can trace the incidents/defects back to the test case and the underlying requirement that generated them, giving the product manager unprecedented power in analyzing the "in-process" quality of a system during its lifecycle. This power is clearly illustrated in the "Requirement Incident Count" pane in the Product Home dashboard (see User/Product Management > Requirements Coverage).
When you click on the Tracking > Incidents global navigation link, you will initially be taken to the incidents list screen illustrated below:
The incident list screen displays all the incidents entered for the current product, in a filterable, sortable grid. The grid displays the incident number together with fields such as incident type (bug, issue, risk, etc.), status (new, open, etc.), priority, name, assigned owner, detection date, detector, closed date, etc. The choice of columns displayed is configurable per-user, per-product, giving extensive flexibility when it comes to viewing and searching incidents.
The sidebar on the left gives you quick access to saved filters, along with some useful charts to get an at-a-glance view of incidents for this product. These charts are:
- a donut chart of the ratio of all incidents in the product that have an open status vs closed status
- a donut chart showing the mix of priorities assigned to all incidents with an open status
In addition, you can view a more detailed description of the incident (along with a resolution if any) by positioning the mouse pointer over the incident name hyperlink and waiting for the popup "tooltip" to appear. If you click on the incident name hyperlink, you will be taken to the incident details page described in Incident Tracking > Incident Details. Clicking on any of the pagination links at the bottom of the page will advance you to the next set of incidents in the list according to the applied filter and sort-order. There is also a drop-down-list at the bottom of the page which allows you to specify how many rows should be displayed in each page, helping accommodate different user preferences.
Filtering & Sorting¶
Incidents can be filtered in special ways when filtering by incident status or incident type:
- Incident Type: Issues are a special subset of Incidents. Admins define which types of incident should be considered issues. When filtering by incident type you can choose to filter by Issues. Doing this will show you all incidents that have any type that is marked as also being an "issue."
- Incident Status: Incidents have customizable statuses, each of which can be marked as "open" or "closed" by the admin. When filtering by incident status you can choose to filter by specific statuses, or "all open" or "all closed" - these last two options automatically filter by all statuses that are considered open or closed respectively.
Clicking on the "New Incident" button takes you to the new incident screen. This is essentially the same screen as the incident details screen shown in Incident Details except, depending on how the workflow has been configured for this product, certain fields may be disabled.
Clicking on the "Delete" button deletes the incidents whose check-boxes have been selected in the incident list.
Clicking on the "Refresh" button simply reloads the list of incidents; this is useful when new incidents are being added by other users, and you want to make sure you have the most up-to-date list displayed.
Show / Hide Columns¶
This drop-down list allows you to change the fields that are displayed in the incident list as columns for the current product. To show a column that is not already displayed, simply select that column from the list of "Show..." column names and to hide an existing column, simply select that column from the list of "Hide..." column names. This is stored on a per-product basis, so you can have different display settings for each product that you are a member of. The fields can be any of the built-in fields or any of the custom properties set up by the product owner.
Each incident in the list has an "Edit" button display in its right-most column. When you click this button or just double-click on any of the cells in the row, you change the item from "View" mode to "Edit" mode. The various columns are made editable, and "Save" buttons are displayed in the last column:
If you click "Edit" on more than one row, the "Save" buttons are only displayed on the first row, and you can make changes to all the editable rows and then update the changes by clicking the one "Save" button. Also, if you want to make the same change to multiple rows (e.g. to change five incidents from "Resolved" status to "Closed"), you can click on the "fill" icon to the right of the editable item, which will propagate the new value to all editable items in the same column.
If you want to edit lots of items, first select their checkboxes and then click the "Edit" button on the same row as the Filters and it will switch all the selected items into edit mode.
When you have made your updates, you can either click "Save" to commit the changes, or "Cancel" to revert back to the original information. Alternatively, pressing the <ENTER> key will commit the changes and pressing the <ESCAPE> key will cancel the changes.
To create a clone of an existing incident or set of incidents, simply select the check-boxes of the incidents you want to copy and then click "Clone" under the Edit menu (or click "Clone" from the "New" dropdown menu from the Incident's details page). This will make a copy of the current incident with its name prefixed 'Copy of ....' to distinguish itself from the original. Any file attachments will also be copied along with the incident itself.
When cloning the test case note that:
- all standard fields (like type and owner) and custom fields are cloned
- description (with formatting) are cloned
- file attachments are cloned
- associated artifacts are not cloned
- followers, comments, automation and history are not cloned
Creating Requirement from Incidents¶
Sometimes you may have enhancements logged that now need to be converted into formal requirements. This may be useful for sprint planning or so test cases and tasks can be made from it. There is a shortcut to create new requirements from selected incidents (1 or more); and it automatically creates an association between each new requirement and the corresponding incident.1
To use this feature:
- select the checkboxes of the incidents you want to convert
- click Tools > Convert Into Requirements
To quickly print a single incident or list of incidents you can select the items' checkboxes and then click Tools > Print Items. This will display a popup window containing a printable version of the selected items. You can also save the report in a variety of common formats from the same Tools menu.
When you click on an incident item in the incident list, or click the "New Incident" button (as described in Incident List), you are taken to the incident details page illustrated below:
This page is made up of three areas:
the left pane is the navigation window where you can quickly jump to other incidents;
the upper part of the right pane contains the incident name and key information about it (it's ID number, and what type of incident it is), as well as the current status (see below); and
the bottom part of the right pane displays different information associated with the incident across a number of tabs.
The navigation pane consists of a link that will take you back to the incidents list, as well as a list of the peer incidents to the one selected. This latter list is useful as a navigation shortcut; you can quickly view the peer incidents by clicking on the navigation links without having to first return to the incidents list page. The navigation list can be switched between four different modes:
- The list of incidents matching the current filter
- The list of all incidents, irrespective of the current filter
- The list of incidents assigned to the current user
- The list of incidents detected/found by the current user
In addition to the left hand navigation, you can enter a specific incident number in the text-box in the toolbar and click the "Find" button. In the same toolbar, there is also a shortcut for creating a copy of the current by clicking the "Clone" button.
Editing an Existing Incident¶
When editing an existing incident, the fields that are available and the fields that are required will depend on your stage in the incident workflow. Read about using workflows to change the status of your artifact, and how electronic signatures can further control how you progress an incident through the workflow.
You can print the current incident by clicking Tools > Print, which will display a printable version of the page in a separate window. Alternatively, you can export the incident to a number of formats by selecting the appropriate option from the Tools menu.
Inserting a New Incident¶
If you are creating a new incident, the fields that are available and the fields that are required will depend on how your product has been for configured. For example, some products may require that all incidents be started with Status=New and Type=Incident, others may allow you to specify the incident type. The types of change allowed will depend on how your product administrator has setup the system for you. Administrators should refer to the SpiraPlan Administration Guide for details on configuring the incident workflows to meet their needs.
Once you've filled out the appropriate incident fields, you can either click "Save" or one of the options from the "Save" dropdown list to commit the changes or click on "Back to Incident List" to discard the insertion and return back to the incident list.
Overview - Comments¶
Read about how the comments works
Overview -- Dates and Times¶
This section displays the general schedule and completion status of the specific incident. You can enter/edit:
- the start-date (this gets set automatically when you add the incident to a release/sprint from the planning board)
- closed-date (i.e. the due-date)
- estimated effort
- actual effort
- remaining effort
Any custom date fields set up by the system administrator or product owner will also appear in this section (as shown below with the Review Date field).
Calculating Incident Progress
To help you better track incidents, there are three special calculated fields used for showing the progress of the incident:
- projected effort
- percent complete
- progress indicator
Projected Effort is calculated by adding "Actual Effort" and "Remaining Effort" together.
Percent Complete is calculated as follows:
- work out the effort already made by substracting "Remaining Effort" from "Estimated Effort"
- divide the above by the "Estimated Effort"
- in other words Percent Complete =
(Est. Effort - Remaining Effort) / Est. Effort * 100
- For example, if Est. Effort is 7 hours and the Remaining effort is 1 hour, then the Percent Complete is about 85%
The Progress Indicator is a colorful progress bar of the percent completion:
|Progress Indicator Color||Incident Progress %||Start Date Value|
|Fully gray||0%||None or in the future|
|Fully yellow||0%||In the past|
|Partly green||Between 0% and 100%||Anything|
Examples of the progress indicator are shown in the screenshots below:
Note, that unlike for tasks, the progress bar will never be red (because incidents do not have an end (due) date).
Read about how the attachments tab works
You can associate other incidents, requirements, test steps, tasks, and risks to an incident from this tab.
The incidents and tasks in this list are ones that a user has decided are relevant to the current one and has created a direct link between them. In the case of requirements and test cases, the association can be either due to the creator of an incident directly linking the incident to the requirement or test step, or it can be the result of a tester executing a test-run and creating an incident during the test run. In this latter case, the check-box to the left of the association will be unavailable as the link is not editable.
Read more about how to manage and add associations to this artifact
Read about how the history tab works
Creating a Requirement from an Incident¶
Sometimes you may have an enhancement logged that now needs to be converted into a formal requirement. This may be useful for sprint planning or so test cases and tasks can be made from it. There is a shortcut to create a new requirement from the current incident; and it automatically creates an association between the new requirement and the incident.1
To use this feature:
- go to the Associations tab
- click the
- at the bottom right of the panel that displays click the
Create Requirement from this Incidentbutton
Read about emailing an incident to colleagues.
The incident board is an alternative to the incident list page designed to let you view the incidents planned for the current product. You can access this feature by clicking on the Board icon in the top-right of the Incidents list page. You can switch back to the Incident list page by clicking on the Table view.
The incident board has the following different display modes:
- By Release
- By Priority
- By Status
- By Person
Release (select a specific release from the release dropdown - only incidents with a Planned Release matching this selection will be displayed)
- By Sprint
- By Priority
- By Status
- By Person
Sprint (select a specific sprint from the release dropdown - only incidents with a Planned Release matching this selection will be displayed)
- By Priority
- By Status
- By Person
Each of these views is described below.
Planning Boards and Editing
Moving cards: Please note that the purpose of a planning board or Kanban board, is to make it straightforward for users to move cards around the interface to plan out their work. Therefore we do not enforce workflow restrictions on the planning board when moving cards. Therefore only users with permissions to bulk edit the relevant artifact can move cards. If the template admin has prevented status changes while bulk editing, then noone can change a card's status by moving its card on the planning.
Viewing cards: to view more information about the card you can: turn on Detailed View; hover on the card name to see a rich tooltip; click on the card's id to open a popup with much more detail; or ctrl/cmd+click on the card's id to open the full details page for that artifact. Information shown in the popup includes all standard and custom fields with fields being shown or hidden based on the workflow step that applies to that specific card.
Editing cards: users with bulk edit permissions can edit a planning board card at any time by click on the card's id (including adding a new comment). This opens a popup with full information about that card. At all times, which fields are shown, required, or hidden is based on the workflow step that applies to that specific card. To save any changes you must fill in all required fields. Please note: you cannot change the status in this edit mode, to do so open the artifact's detail page (you cand do this from the popup by clicking the button next to the artifact's id at the top).
Add new cards: if you are able to create the requirements then you will see plus (add) symbols in different locations on the board. Clicking any of these will open an popup screen with all relevant fields available. Some of these fields may be prepopulated based on what add button you clicked and how you are using the board. For instance, if you are viewing for a release, that release will be preselected. And if you are grouping by person and click on a particular person, that person will be set as the owner of the artifact. The fields visible and required is driven based on what workflow step will apply to that new card.

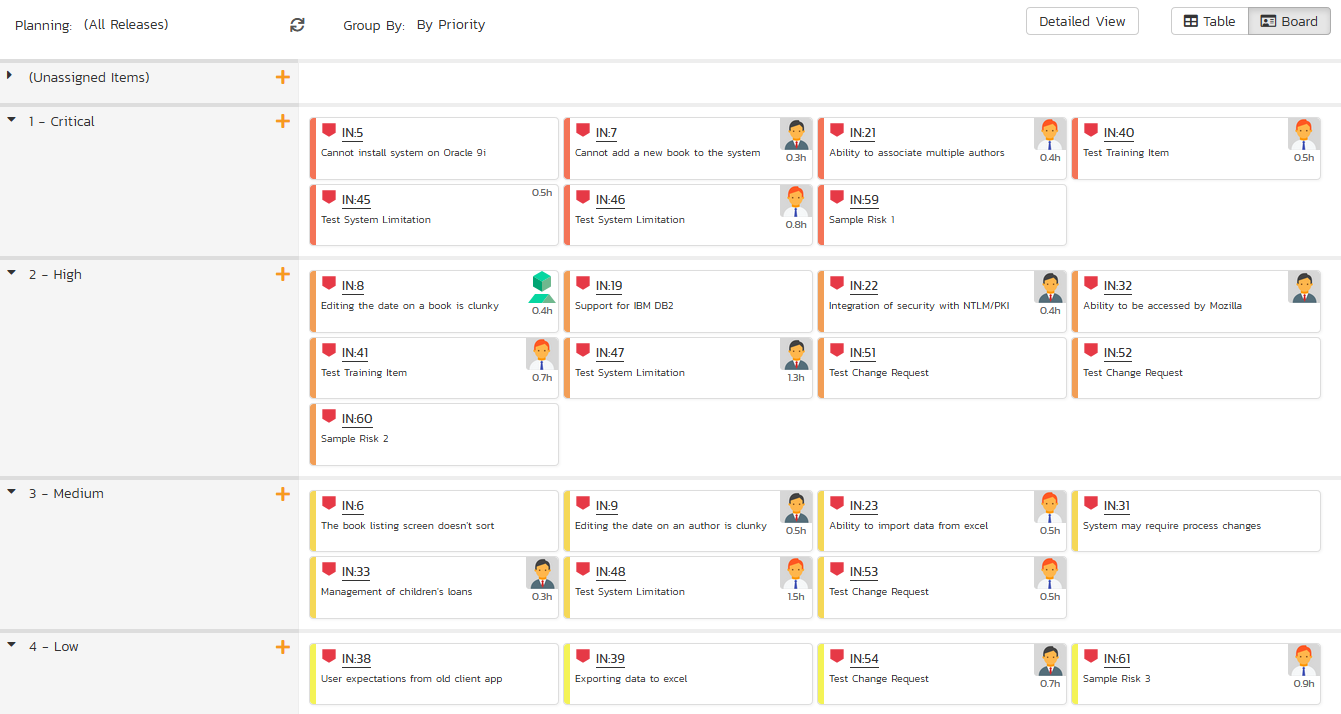

Incidents -- By Priority¶
This view is designed to let you see the list of planned incidents organized by priority. Each of the possible priority values is displayed on the left-hand side and the incidents displayed in the same row on the right:
The top section will contain the list of incidents that are not assigned a priority, with the other sections containing the incidents that have been assigned to the specific priority.

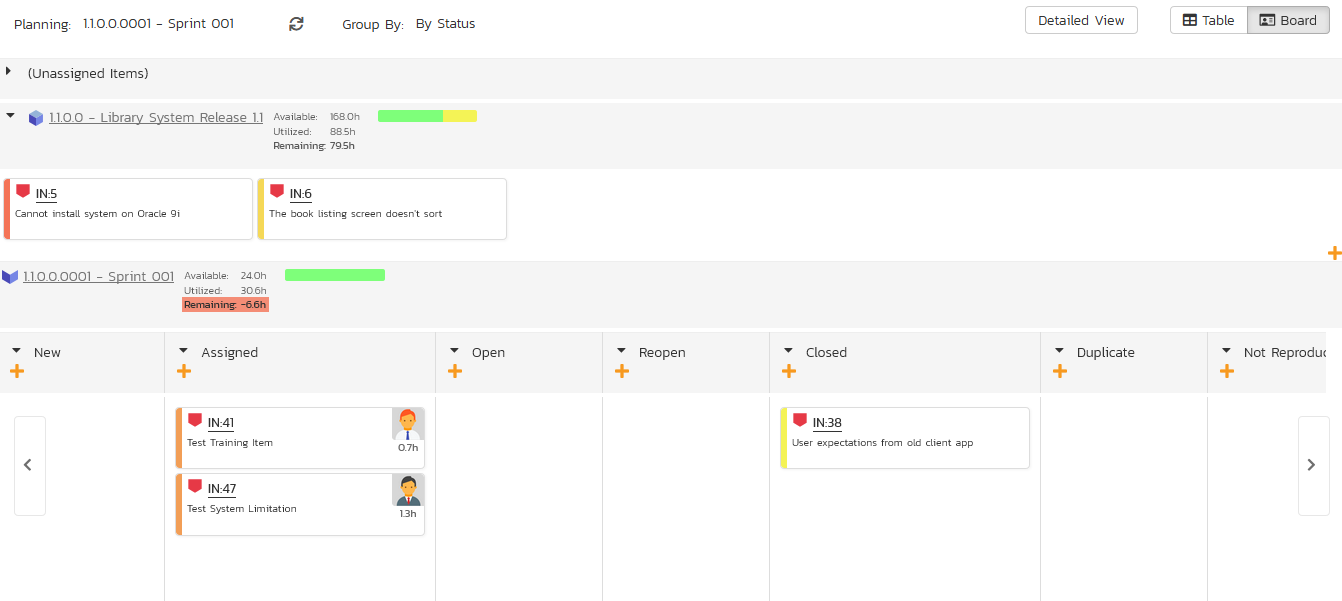

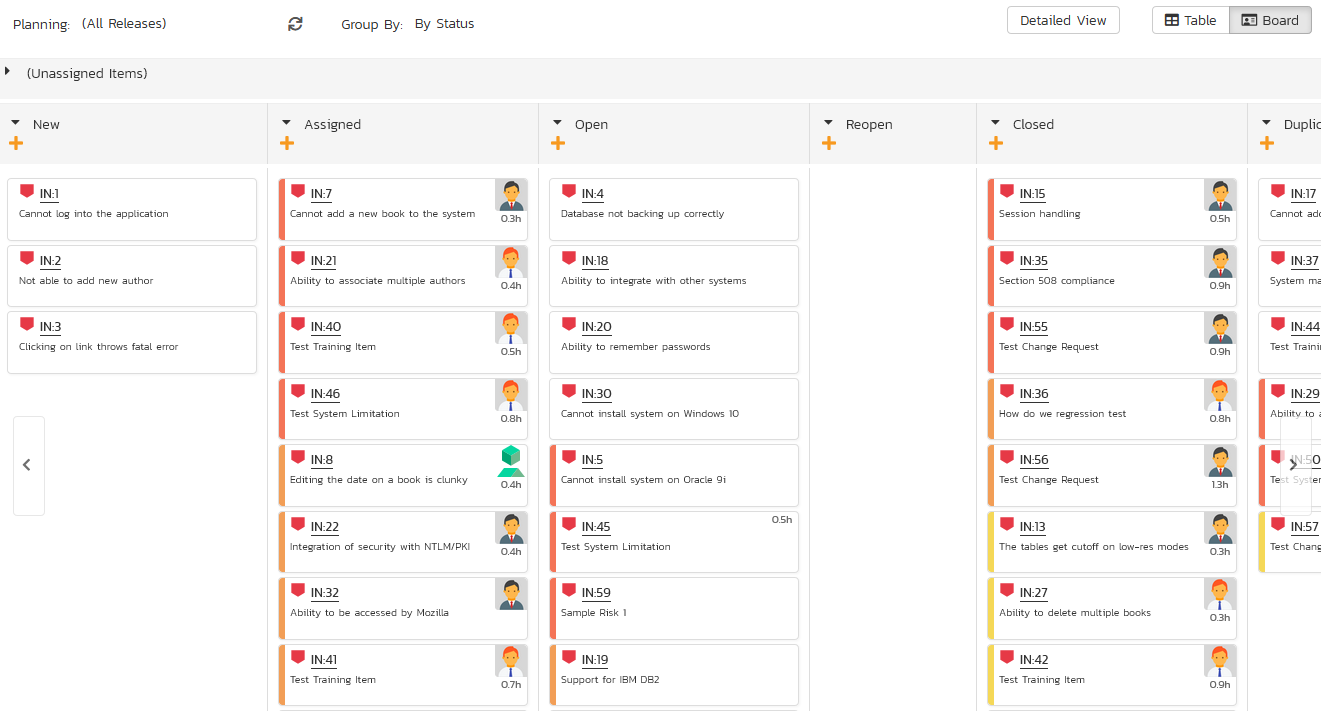

Incidents -- By Status¶
This view is designed to let you see the incidents in the current product / release / sprint organized by their status. Each incident status (not started, in progress, completed, blocked, deferred) is displayed as a heading, with the incidents displayed in the same column underneath:
You can click on the expand/collapse icons to hide any statuses that are not relevant.
Depending on the view (all releases, release, or sprint), there may be sections with the release and sprint name. You can drag and drop the incidents between statuses or to/from the release/sprint backlog. Any incidents not assigned to a release/sprint will be listed in the (Unassigned Items) section at the top.

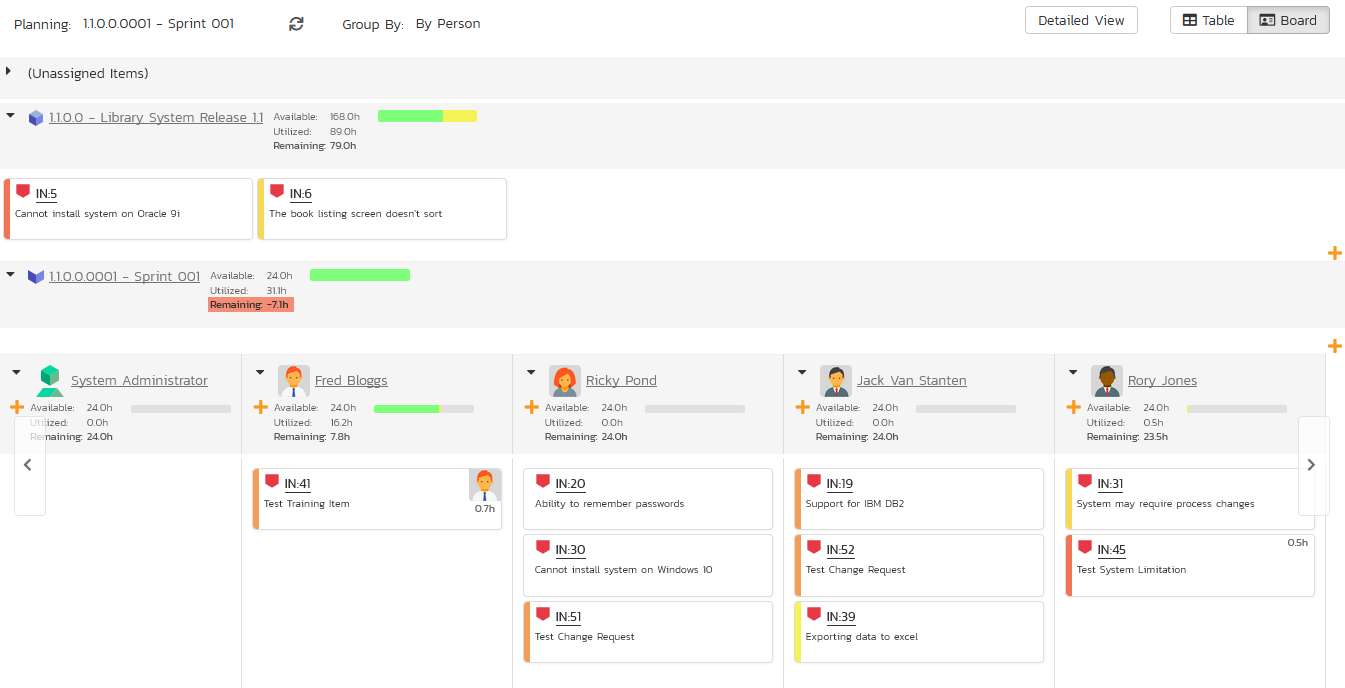

Incidents - By Person¶
This view is designed to let you see the incidents in the current product / release / sprint organized by resource / person. Each of the users that is a member of the current product is displayed as a heading, with the incidents displayed in the same column underneath:
You can click on the expand/collapse icons to hide any people that are not relevant. The system will display a progress bar for each resource to illustrate the allocation for that resource. Any resource that has a progress bar that is completely green has been fully scheduled and should not have any additional incidents assigned. If the progress bar for that resource turns red, it means that they have been over-scheduled and you need to reassign some of the incidents.
Depending on the view (all releases, release, or sprint), there may be sections with the release and sprint name; they contain incidents that are scheduled for the current release or sprint but have not yet been assigned to a resource. You can drag and drop the incidents between resources or to/from the release/sprint backlog (as long as the item has a status that let's you set or edit its owner field). Any incidents not assigned to a resource and release/sprint will be listed in the (Unassigned Items) section at the top.
Incidents - By Release¶
This view is only available when you are displaying the incident board for 'all releases'. Each of the active releases defined for the current product is displayed as a heading. Incidents are displayed in the release column that matches their Planned Release.
You can drag and drop the incidents between the different releases. Once the incident has been added to the release, the utilized effort for the release will increase, and the available effort will decrease by the same amount.
Note: The system will allow you to assign more incidents to a release than it is possible to complete, however this will result in a negative value for 'available effort'. If this happens, the "Available Effort" value will be displayed in red, and you need to rebalance the items, extend the release length or add product personnel resources to the release.
Clicking on the release hyperlinks in the headers will switch the incident board into the release view.

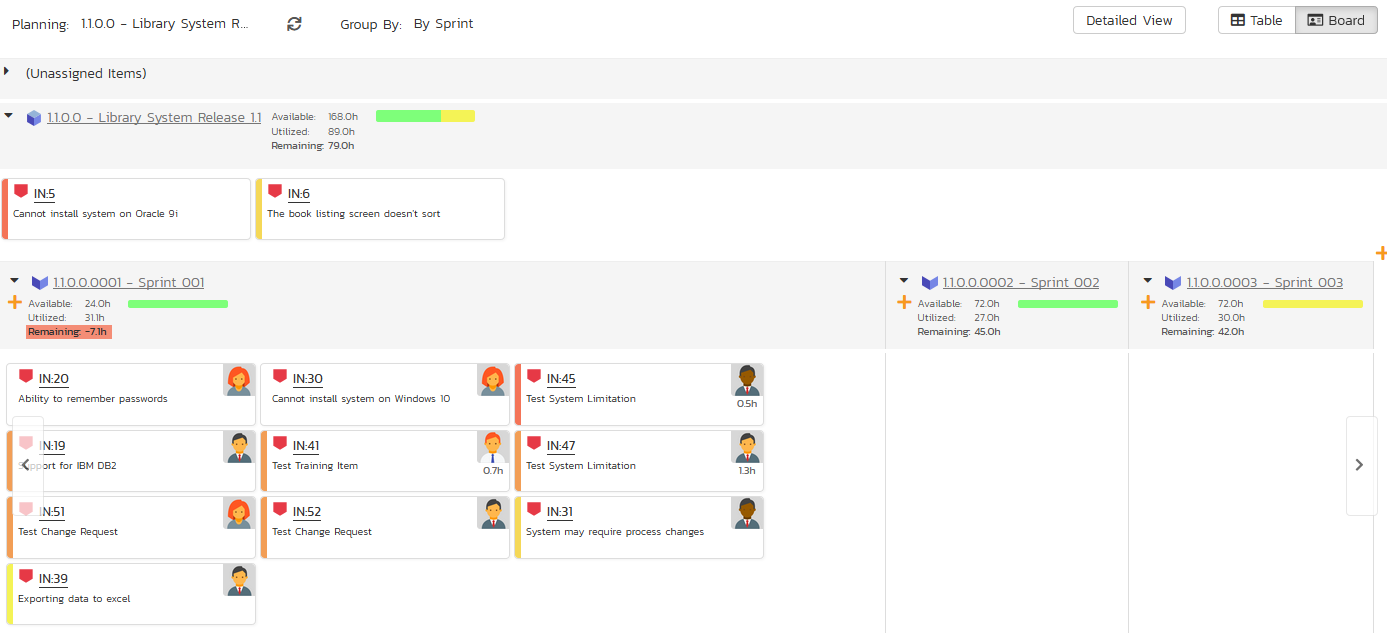

Incidents - By Sprint¶
This view is only available when you are displaying the incident board for a specific release. Each of the sprints defined for the current release is displayed as a heading. Incidents are displayed in the sprint column that matches their Planned Release. This view is commonly used in Scrum products:
You can drag and drop the incidents between the different sprints. Once the incident has been added to the sprint, the utilized effort for the sprint will increase, and the available effort will decrease by the same amount.
Note: The system will allow you to assign more incidents to a sprint than it is possible to complete, however this will result in a negative value for 'available effort'. If this happens, the "Available Effort" value will be displayed in red, and you need to rebalance the items, extend the sprint length or add product personnel resources to the sprint.
Clicking on the sprint hyperlinks in the headers will switch the incident board into the sprint view.
To create a requirement from an incident, the user needs must have the permission to create requirements (which makes sense).
The creation process does not enforce the relevant requirement workflow to make sure that all required fields are filled in.
What gets copied over from the incident to the new requirement:
- "Detected By" becomes Author
- Component (as long as only a single component is selected on the incident)
- "Planned Release" becomes Release
- Priority becomes Importance (using an intelligent name match)
- "Estimated Effort" becomes Estimate (converting hours into points)
- Custom Fields of type list or multilist that use the same list and have the same name (case insensitive)
- Comments (using the name of the original author, but the comment creation date is the current date)
- Auto-link any attachments linked to the incident are linked to the requirement too
