Using Spira with ServiceNow

ServiceNow tables are a highly customizable system that can be synced with SpiraTest, SpiraTeam or SpiraPlan (SpiraPlan from here on). This integration service enables two-way syncing of new incidents and requirements with any table in ServiceNow and syncing of updates from ServiceNow into SpiraPlan. Attachments will only be synced with creation.

Set up data synchronization

STOP! Please make sure you have first read the instructions to set up the data sync before proceeding!

Configuring the Integration Service

This section outlines how to set up the integration service between ServiceNow and SpiraPlan. It assumes that you already have a working installation of SpiraPlan and appropriate ServiceNow tables. To setup the service, you must be logged into SpiraPlan as a user with System-Administrator level privileges.

Inside SpiraPlan, go to the Administration page and navigate to Integration > Data Synchronization. Check if you see a plug-in called ServiceNowDataSync, as shown below:

What do if the plug-in is not there

If you don't see the plug-in in the list, click the ""Add" button at the top of the page. This opens the generic Data Sync plug-in details page. This is not yet customized to help you more easily set up the data sync. We recommend, adding just enough information now to create the plug-in. Then edit the plug-in after its made to complete the process.

To start, fill in the following fields:

  • Name: enter "ServiceNowDataSync" exactly
  • Connection Info: enter the location of your ServiceNow account (see "SN URL" below)
  • Login: enter your ServiceNow username

Now click "Add" to save the plug-in and return you to the list of plug-ins. Now follow the instructions below.

With the plug-in place, click on its "edit" button to open its detailed settings page.

You need to fill out the following fields for the ServiceNow Data Sync plugin to work properly:

  • Name: This needs to be set to ServiceNowDataSync
  • Caption: This is the display name of the plug-in, generally something generic like "ServiceNow" will work.
  • Description: The description of what you're using the plug-in for. This field is entirely optional and is not used by the system in any way.
  • SN URL: The location of your ServiceNow account. For example, if you're on a dev instance, your connection info should be https://devxxxxx.service-now.com
  • SN Login: Your ServiceNow username
  • SN Password: Your ServiceNow password
  • Time Offset: Set this to how many hours ahead UTC is, so for EDT (UTC-4), you would put in positive 4.
  • Auto-Map Users: Set to yes if you would like the plugin to map users one-to-one by checking first & last names. Set to no if you would like to map users manually.
  • Incidents Table: The name of the table you would like to sync with incidents in SpiraPlan. This can be found in the name field in the table definition within ServiceNow Studio.
  • Incidents Project Field: The name of the table column in ServiceNow (make sure it is a Choice field) which will decide which project an incident is created in. This can be found in ServiceNow Studio under the column name.
  • Requirements Table: The name of the table you would like to sync with requirements in SpiraPlan. This can be found in the name field in the table definition within ServiceNow Studio. This cannot be the same as the "Incident Table".
  • Requirements Project Field: The name of the table column in ServiceNow (make sure it is a Choice field) which will decide which project a requirement is created in. This can be found in ServiceNow Studio under the column name.

Click the "Save" button.

NOTE: Leave any field called "(Not Used)" blank.

Configuring Project Mappings

For this step, please ensure that you are in a SpiraPlan project you would like to sync with ServiceNow. For this example, the project is called "ServiceNowDataSync Test."

Click on the "View Project Mappings" button for the ServiceNow Data Sync. You need to fill out the following fields to sync correctly:

  • External Key: A specific value that the table column name listed in Incidents Project Field/Requirements Project Field should have to map with this project (this must be a Choice field). For example, if the table column in ServiceNow that stores your project names is called "Project", and that column contains values like "alpha", "beta", "gamma", type "alpha" to map every alpha item to this product. In other words, do not type "Project".
  • Active: Set this to yes so that the Data Sync plug-in knows to synchronize with this project.

The spira_product example above is a 'choice' type with the choices shown below:

Type in the 'Label' field of the choice, not the 'Value.'

A brief note about field syncing in ServiceNow: The sheer configurability of ServiceNow meant some assumptions were made in the designing of this data sync. Specific column names are mapped to their counterparts in SpiraPlan based on the list below. If a field is not present in ServiceNow, it will simply not be synced.

SpiraPlan Field ServiceNow Column
Name name / short_description (both will work)
Description description
Priority / Importance priority
Author / Detected By opened_by
Owner assigned_to
Status state
Incident Severity severity
Type type

Configuring the Incident/Requirement Status Mappings

Now click the "Status" button within the "Incident" section to map the Incident statuses together. The purpose of this is so that the ServiceNow Data Sync plug-in knows what the equivalent status is in ServiceNow for an incident status in SpiraPlan. The process is identical for Requirement statuses, so repeat these steps with Requirement > Status instead if you are also/only syncing requirements.

If you don't have a status equivalent in your table, you can ignore this section.

You must map every status in SpiraPlan to ServiceNow. Descriptions of the field are below:

  • External Key: If state is a dropdown in ServiceNow, it's the 'Label' (not 'Value') of the choice, which is also what is shown in the ServiceNow UI. If state is a string in ServiceNow, just write in the value of the string to be mapped to the SpiraPlan status. Please take care to match it exactly (case, spaces, etc)
  • Primary: You must have exactly one primary key for each ServiceNow status. This is what status the plug-in should set the incident in SpiraPlan to when the status in ServiceNow changes. This is only used if there are more options in SpiraPlan than ServiceNow.

Here are the corresponding statuses in ServiceNow

Configuring the Incident/Requirement Type Mappings

Click the "Type" button for the relevant artifact to map the Incident or Requirent types between SpiraPlan and ServiceNow together. The process is identical to the mappings described previously, so repeat these steps with Incident and Requirement Types if you are syncing them.

You must map every type in SpiraPlan to ServiceNow. Descriptions of the field are below:

  • External Key: If type is a dropdown in ServiceNow, it's the 'Label' (not 'Value') of the choice, which is also what is shown in the ServiceNow UI. If type is a string in ServiceNow, write in the value of the string to be mapped to the SpiraPlan type. Please take care to match it exactly (case, spaces, etc)
  • Primary: You must have exactly one primary key for each ServiceNow type. This is what type the plug-in should set the incident and/or requirement in SpiraPlan to when the type in ServiceNow changes. This is only used if there are more options in SpiraPlan than ServiceNow.

Configuring the Priority/Importance Mapping

Now click the "Priority" button within the "Incident" section to map incident priorities. This will tell the ServiceNow Data Sync plug-in which priorities in ServiceNow map to those in SpiraPlan. The process is identical for Requirement importance, so repeat these steps with Requirement > Importance instead if you are also/only syncing requirements.

If you don't have a priority equivalent in your table, you can ignore this section.

You must map every priority/importance in SpiraPlan to ServiceNow. Descriptions of the field are below:

  • External Key: If state is a dropdown in ServiceNow, it's the 'Label' (not 'Value') of the choice, which is also what is shown in the ServiceNow UI. If state is a string in ServiceNow, just write in the value of the string to be mapped to the SpiraPlan status. Please take care to match it exactly (case, spaces, etc.)
  • Primary: You must have exactly one primary key for each ServiceNow priority. This is what priority the plug-in should set the incident in SpiraPlan to when the priority in ServiceNow changes. This is only used if there are more options in SpiraPlan than ServiceNow.

Here are the corresponding priorities in ServiceNow:

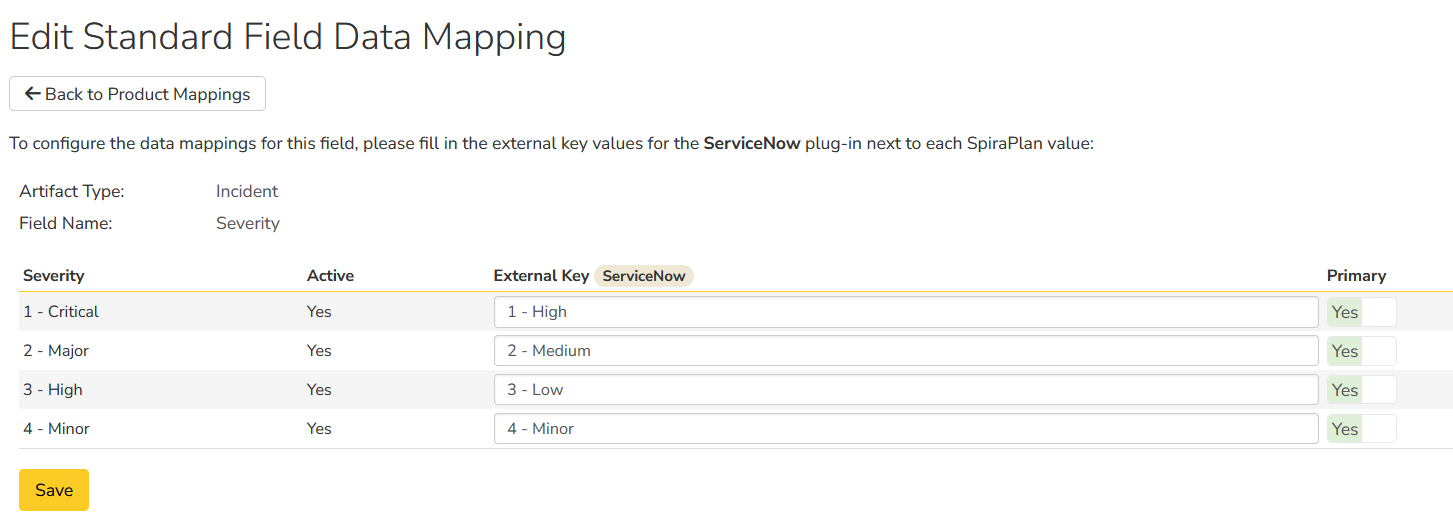

You can use the same logic to configure Incident Severity mappings.

Cloning ServiceNow Fields

Due to some of the assumptions made in the creation of this integration, it is often necessary to create a hidden compatibility layer between the fields you use in your ServiceNow table and those recognized by the SpiraPlan data sync. This section will lay out how to create 'hidden' fields that will be kept in sync with those in SpiraPlan.

  • Create the field you would like to clone [for this example I will keep "Complete Notes" (visible by ServiceNow users) in sync with "Description" (for syncing with SpiraPlan)]

  • A brief discussion about the requirements for this to work

    • Both fields must be of the same type in ServiceNow
    • If you have a list or choice, the "Value" of each choice must map one-to-one between the hidden 'Spira' field and the visible ServiceNow field

  • These steps will show how to store description in complete notes when Spira creates an artifact in ServiceNow

    • If Studio is not open already, open System Applications > Studio, then select the application the tables are being synced with
    • In the top left, click "Create Application File" and select Server Development > Business Rule
    • Create a new Business Rule and assign it to the table you are working with [for this example I will use Spira Test Table]
    • Name it something helpful [like "description -> complete notes"]
    • Under Where to run, check the Insert box

    • Add a Filter Condition such that the field you're cloning with the Spira field is empty:

    • Under Actions, where it says "---choose field --" set it to the field you would like to be populated ["Complete Notes" in this example]

    • To the right of the field name, set "To" to "Same as" and select the Spira field ["Description" in this example]

  • These steps will show you how to store complete notes in description when the user updates complete notes

    • In the top left, click "Create Application File" and select Server Development > Business Rule
    • Create a new Business Rule and assign it to the table you are working with [for this example I will use Spira Test Table]
    • Name it something helpful [like "[update] complete notes -> description"]
    • Under Where to run, check the Update box
    • Under Actions, where it says "---choose field --" set it to the Spira field you would like to be synced ["Description" in this example]
    • To the right of the field name, set "To" to "Same as" and select the ServiceNow field editable by the user ["Complete Notes" in this example]

  • These steps will show you how to store complete notes in description when the user creates a new artifact in ServiceNow

    • In the top left, click "Create Application File" and select Server Development > Business Rule
    • Create a new Business Rule and assign it to the table you are working with [for this example I will use Spira Test Table]
    • Name it something helpful [like "[creation] complete notes-> description"]
    • Under Where to run, check the Insert box

    • Add a Filter Condition such that the Spira field is empty:

    • Under Actions, where it says "---choose field---" set it to the Spira field you would like to be synced ["Description" in this example]

    • To the right of the field name, set "To" to "Same as" and select the ServiceNow field editable by the user ["Complete Notes" in this example]

Configuring Custom Properties

This section assumes the custom properties in SpiraPlan and ServiceNow are of the same type (integer -> integer, SingleSelect -> SingleSelect, etc.) Custom property syncing will not work otherwise. This applies to both requirement and incident custom properties.

Click on a custom property mapping for a property you would like to sync. For the "External Key" right below the "Name" field put the column name (not the column label), so for the Operating System field in ServiceNow, you would put in "operating_system" No extra work is required for user (sys_user references in ServiceNow), text, integer, or date fields.

If your custom property is a single-select list (choice in ServiceNow), for each custom value, put in the "Label" (not Value) of the choice in ServiceNow. So your single-select should look similar:

If you have a multi-select in SpiraPlan (List in ServiceNow), repeat the same steps as for a single-select, except instead putting "Label" in the external key, put "Value" instead. You should have something like this:

For these ServiceNow choices:

Configuring the User Mapping

If you have set the "Auto-Map Users" option set to yes in the ServiceNow plugin, you can skip this section completely.

To configure the mapping of users in the two systems, you need to go to Administration > Users > View Edit Users, which will bring up the list of users in the system. Then click on the "Edit" button for a particular user that will be editing issues in ServiceNow:

Click on the 'Data Mapping' tab to list all the configured data-synchronization plug-ins for this user. In the text box labeled "ServiceNow Data Sync ID," you need to enter the first and last name of the user in ServiceNow. This will allow the data-synchronization plug-in to know which user in SpiraPlan matches with an equivalent user in ServiceNow. Click [Save] once you've entered the appropriate login name. You should now repeat for the other users who will be active in both systems.

Using the Data Synchronization

Assuming everything was done correctly, the plug-in should start working. Start your Data Sync service and verify that issues in ServiceNow appear inside SpiraPlan. Note that the Data Sync service is not running constantly, so it may take some time for changes to materialize.

Congratulations, you have just integrated your SpiraPlan instance with ServiceNow!
